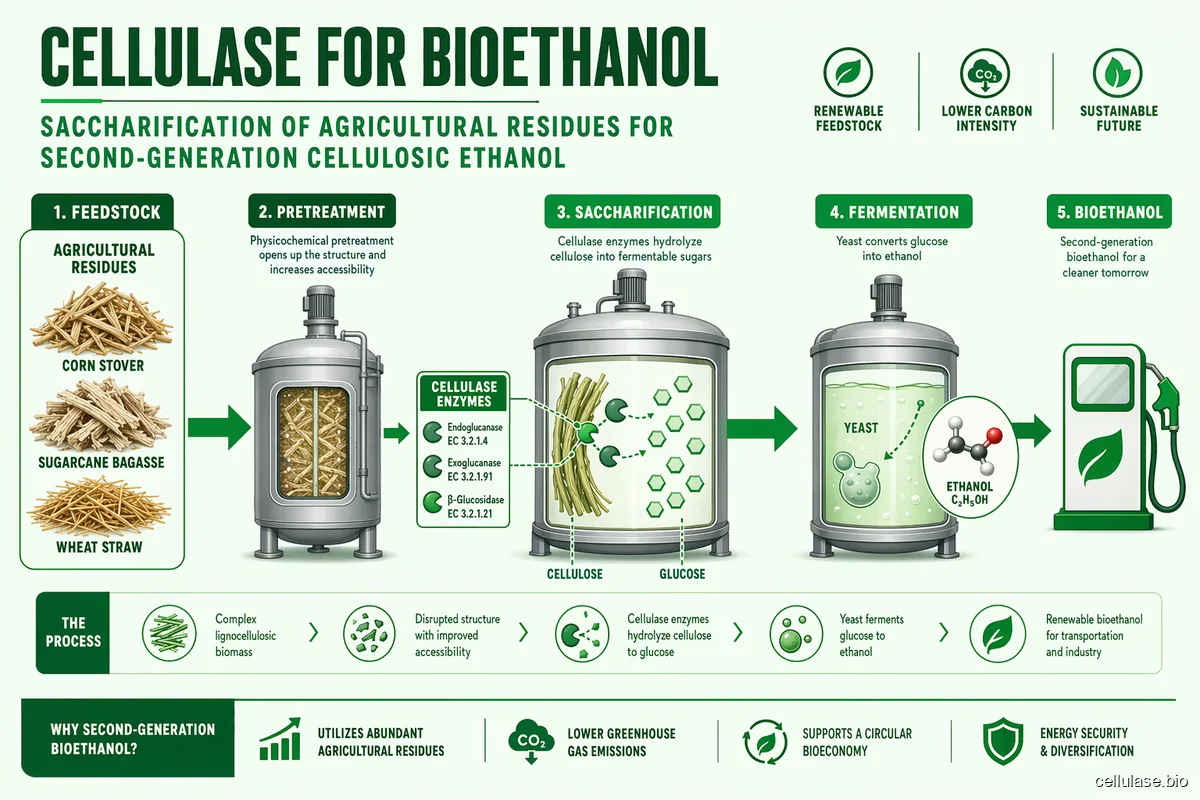

Cellulase for Bioethanol — Saccharification of Agricultural Residues for Second-Generation Cellulosic Ethanol

Convert lignocellulosic biomass — corn stover, bagasse, wheat straw, and wood chips — to fermentable glucose using high-activity cellulase enzyme for second-generation bioethanol saccharification.

Short answer

Second-generation ethanol needs cellulase because its feedstock is cellulose, not starch. Once pretreatment has opened up the lignin-hemicellulose matrix, a cellulase complex — endoglucanase, cellobiohydrolase and beta-glucosidase acting together — hydrolyses cellulose to glucose for fermentation. Enzyme loading and pretreatment severity trade off against each other and set plant economics.

Second-generation (2G) bioethanol — produced from lignocellulosic agricultural residues and energy crops rather than food-competing starch or sugar crops — depends fundamentally on cellulase enzyme to convert cellulose into fermentable glucose. The lignocellulosic feedstocks used in 2G bioethanol production — corn stover, sugarcane bagasse, wheat straw, rice straw, switchgrass, and woody biomass — contain 30–50% cellulose by dry weight, which represents the dominant fermentable substrate. But this cellulose is embedded in a matrix of hemicellulose and lignin that physically shields it from enzymatic attack, requiring a pretreatment step (dilute acid, steam explosion, alkaline, or organosolv) before enzymatic saccharification. After pretreatment, which disrupts the lignin-hemicellulose matrix and increases cellulose surface accessibility, cellulase enzyme is applied in the saccharification step to hydrolyze cellulose chains to glucose monomers. This hydrolyzed glucose stream is then fermented by Saccharomyces cerevisiae or other organisms to produce ethanol. The cellulase enzyme system required for effective lignocellulosic saccharification is a multi-component complex including endoglucanase (EC 3.2.1.4), cellobiohydrolase (EC 3.2.1.91), and beta-glucosidase (EC 3.2.1.21) — together acting synergistically to depolymerize crystalline cellulose to cellobiose and glucose. Cellulase from Trichoderma reesei is the industry standard for 2G bioethanol because T. reesei produces a well-balanced cellulase complex with high cellobiohydrolase content and strong synergism between complex components. Saccharification conditions are typically pH 4.5–5.5 and 45–55°C, with enzyme loading set against the cellulose content of the pretreated substrate, depending on pretreatment severity, cellulose crystallinity, and target glucose yield. For industrial bioethanol plants and biorefineries, enzyme cost is a major factor in the economics of 2G ethanol — enzyme cost per liter of ethanol must be minimized through high specific activity, matched loading to pretreatment severity, and glucose yield optimization at commercially viable enzyme doses. Technical buyers specify cellulase enzyme by the hydrolysis performance it achieves on their own pretreated substrate, the level of beta-glucosidase supplementation required, protein content, and thermal stability at process temperature.

See what cellulase is and how it breaks down cellulose for the full picture.

Updated · cellulase

Applications

Corn stover saccharification for lignocellulosic ethanol

Corn stover pretreated by dilute acid or steam explosion at high solids (15–25% dry matter) is saccharified with cellulase enzyme at the loading matched to the pretreatment, supplemented with beta-glucosidase, at pH 4.8–5.2 and 50°C for 48–72 hours. Glucose yields of 80–92% of theoretical cellulose conversion are achievable at these conditions, providing the fermentable substrate for ethanol fermentation at 50–60 g/L glucose in the hydrolysate. The hydrolysis is typically conducted at high solids to minimize water use and maximize glucose concentration for downstream fermentation.

Sugarcane bagasse cellulase hydrolysis for ethanol and glucose

Sugarcane bagasse, the fibrous residue from juice extraction, contains 35–45% cellulose and is the primary feedstock for 2G ethanol in sugarcane-producing regions. After pretreatment by dilute acid or alkaline/steam at 180–200°C, bagasse is saccharified with cellulase at the loading matched to the pretreatment, at pH 4.8–5.0 and 48–50°C for 48–72 hours. A high-concentration Trichoderma reesei cellulase grade provides the endoglucanase and cellobiohydrolase activity needed for efficient crystalline cellulose hydrolysis in the bagasse matrix.

Wheat straw and agricultural residue saccharification

Wheat straw, rice straw, and other agricultural cereal residues pretreated by alkaline hydrogen peroxide, organosolv, or steam explosion at 10–20% dry matter solids are saccharified with cellulase at the loading matched to the pretreatment, pH 5.0–5.5, 50°C, for 48–96 hours. Agricultural straws have lower cellulose crystallinity than woody biomass and typically achieve 75–90% cellulose conversion at these conditions with T. reesei cellulase enzyme, providing glucose concentrations of 40–70 g/L in the saccharification liquor depending on initial dry matter loading.

Simultaneous saccharification and fermentation (SSF) process

In simultaneous saccharification and fermentation (SSF), cellulase enzyme and fermentation yeast are added together to pretreated biomass, with glucose consumed by yeast as fast as it is produced by the enzyme, reducing product inhibition of cellulase by cellobiose and glucose. SSF conditions are typically pH 5.0–5.5 and 37–39°C — a compromise between the cellulase optimum (50°C) and the yeast fermentation optimum (30–35°C). Cellulase enzyme at the loading matched to the pretreatment in SSF achieves 70–85% cellulose conversion within 72–120 hours, with simultaneous ethanol production reducing the need for a separate fermentation vessel.

Product Specifications

Parameter Value
Activity range Multiple grades (powder & liquid)
Optimal pH 4.0 – 6.0
Optimal temperature 45°C – 60°C
Form Light brown to brown powder or liquid
Shelf life 12 months (sealed, cool, dry place)
Packaging 25 kg drums (powder) / 30 kg jerricans (liquid)

Frequently Asked Questions

What cellulase components are needed for complete lignocellulosic biomass saccharification?

Effective lignocellulosic saccharification requires a multi-component cellulase system: endoglucanase (EC 3.2.1.4) randomly cleaves internal glycosidic bonds in the cellulose chain, reducing the degree of polymerization; cellobiohydrolase (EC 3.2.1.91) attacks chain ends and is the dominant enzyme for crystalline cellulose hydrolysis; and beta-glucosidase (EC 3.2.1.21) converts cellobiose (the two-sugar product of cellobiohydrolase) to glucose, preventing cellobiose accumulation which otherwise inhibits cellobiohydrolase. Trichoderma reesei naturally produces all three components with high cellobiohydrolase content, making T. reesei cellulase the standard for 2G ethanol saccharification. Where beta-glucosidase activity is insufficient in the native T. reesei preparation, supplemental beta-glucosidase from Aspergillus niger is added.

How do I work out how much cellulase to use per tonne of biomass?

Enzyme loading is set against the cellulose in the pretreated substrate, not against the raw biomass, so the calculation runs in three steps. First, determine the cellulose content of the pretreated substrate — typically 35–50% of dry weight, and worth measuring rather than assuming, because pretreatment severity moves it. Second, multiply tonnes of dry biomass by that cellulose fraction to get kilograms of cellulose per tonne. Third, apply the loading your own hydrolysis trial showed was needed to hit the target glucose yield on that substrate, and convert it to kilograms of enzyme product per tonne of biomass at the concentration of the grade you are buying. Loading is the single largest enzyme cost lever in second-generation ethanol, so it should be established on your own pretreated material and re-checked whenever pretreatment severity, solids loading, or residence time changes. Send us your substrate analysis and target yield and we will recommend a grade and a starting loading for trial.

What pretreatment is required before cellulase saccharification?

Pretreatment is required because native lignocellulosic biomass is highly recalcitrant to enzymatic attack — the crystalline cellulose is physically shielded by lignin and hemicellulose, and its crystalline structure resists enzyme access. Effective pretreatments disrupt this matrix and increase cellulose surface area accessible to cellulase. Common pretreatments include: dilute acid at 120–200°C (hemicellulose solubilization, good cellulose accessibility); steam explosion at 160–240°C (physical disruption, some lignin redistribution); alkaline hydrogen peroxide (lignin oxidation and swelling); and organosolv (lignin extraction with organic solvents). The choice of pretreatment affects cellulose crystallinity, inhibitor formation, and the required enzyme loading for a given glucose yield.

How does product inhibition affect cellulase performance, and how is it managed?

Cellulase enzymes — particularly cellobiohydrolase — are inhibited by their hydrolysis products: cellobiose and glucose. As cellobiose and glucose accumulate in the saccharification vessel, they bind to the enzyme active site and slow the reaction rate. At glucose concentrations above 10–20 g/L, glucose inhibition of beta-glucosidase becomes significant, causing cellobiose accumulation that then inhibits cellobiohydrolase. Management strategies include: (1) supplemental beta-glucosidase addition to rapidly convert cellobiose to glucose; (2) high-solid saccharification at high temperature to maintain higher enzyme-to-product ratios; (3) simultaneous saccharification and fermentation (SSF), where yeast continuously consumes glucose, keeping glucose concentration low; and (4) fed-batch saccharification, adding enzyme and substrate in portions to limit peak product concentration.
